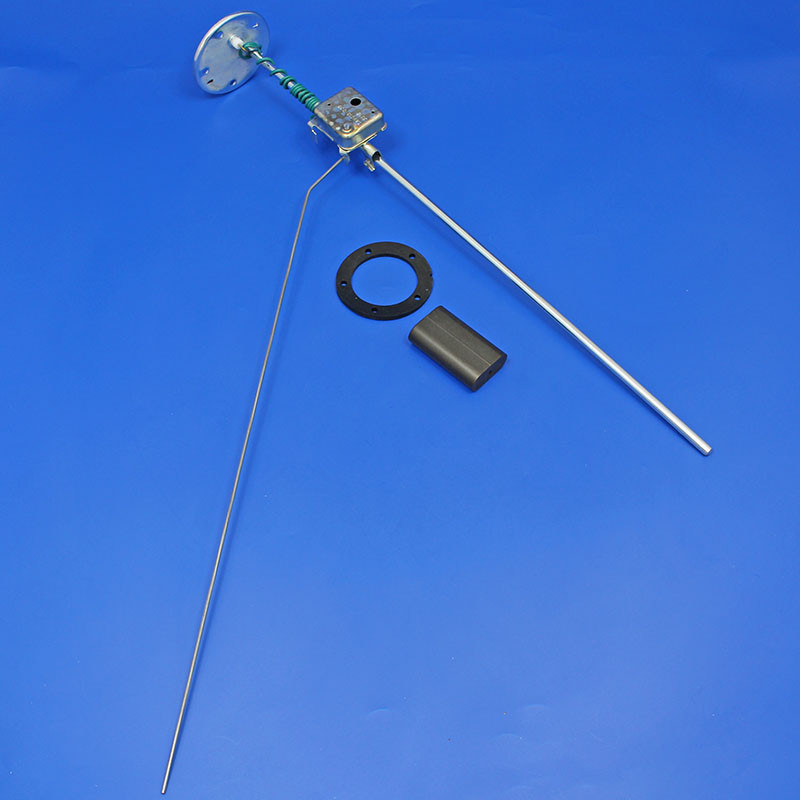

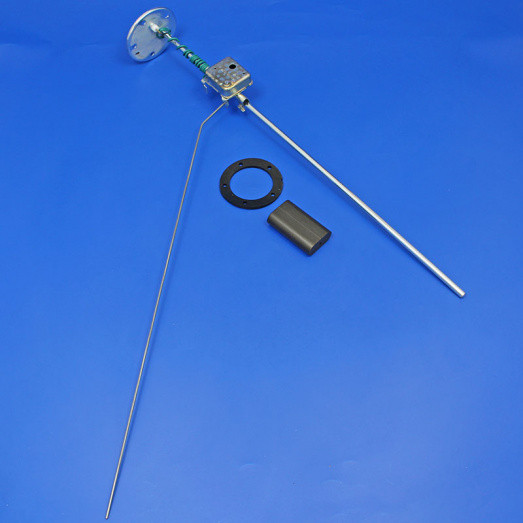

Top Mounting. Euro SMITHS fitting five holes on 51 mm pitch circle diameter. Gasket supplied. The arm length is adjustable for tanks of depths/diameters between 203 mm and 610 mm. After adjustment the arm is secured clips and soldering. Fitting and wiring instructions are provided. You will need to run a wire from the sender to earth. For use with Smiths Classic Fuel Gauges. 12 volt. Resistance 20 ohms (Empty) to 220 ohms (Full).
NOTE: The Euro scale is the reverse of the US scale. A low resistance (eg 20 ohms) will display EMPTY on the correct gauge, high resistance (eg 220 ohms) will display FULL.
Incompatible senders or gauges will give incorrect - opposite readings.
