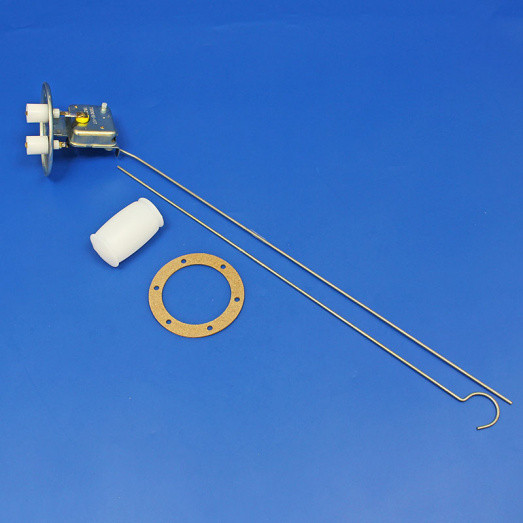

Side Mounting. Standard SMITHS fitting six holes on 60.33 mm pitch circle diameter. Gasket supplied. The arm length is adjustable for tanks of depths/diameters between 203 mm and 610 mm. After adjustment the arm is secured with clips and soldering. Fitting and wiring instructions are provided. You will need to run a wire from the sender to earth. For use with Smiths Classic Fuel Gauges.12 volt. The resistance range is approx 20 ohms (Full) to 260 ohms (Empty) - sometimes called the US/American scale. "Bimetal" characteristic. See fitting instructions.
