Cooling Accessories - Revotec electronic Thermostat fan controller 45mm - Neg earth

Revotec electronic Thermostat fan controller 45mm - Neg earth

Large 45mm hose size. These universal thermostats provide an easy retrofit solution for controlling an electric cooling fan. Electronic Fan Controller for fitment into a coolant hose.

Adjustable so the fan can be switched on anywhere between 70 and 120°C.

Negative Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 45mm Overall length approx: 65mm  Material: Aluminium Relay Rating: 30 AMPS  Wire Length: 700mm Supplied With: 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

@ £94.25/  Each  (exc. VAT)  (inc. VAT @ 20%)
Subtotal:
Total: £

Fitting instructions

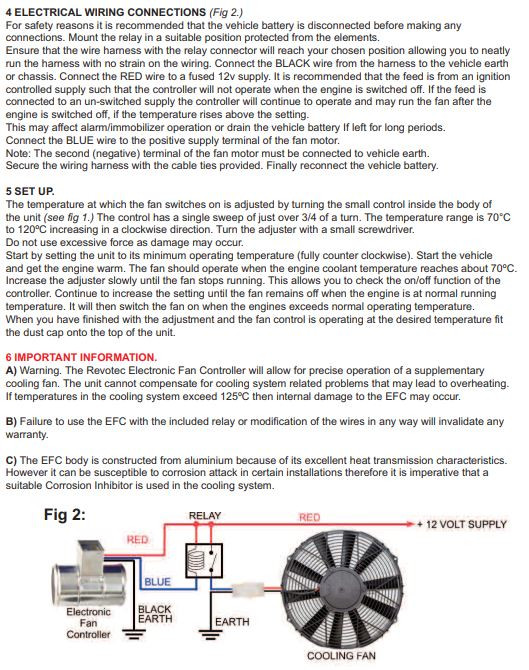

Revotec Fan Controller Fitting Instructions

Fitting Instructions for the Revotec inline electronic thermostat radiator fan controller
