Angled pull on/push off in line fuel tap with a pull/push knob with a cork seal and filter gauze attached. Offered with either a 1/4" BSP or 1/8'' BSP male thread into the tank. 7/16" TPI outlet thread for solder nut and nipple connection. The tap is offered as shown, if a solder nut and nipple is required please order separately. --

Fuel resistant (neoprene) rubberised cork gasket/seal that fits our 895 and 896 inline taps. 14mm in diameter, 3mm thick with 3mm hole in the centre.

Brass curved drain tap with 1/8" BSP male thread, for radiator drain.

Straight in line tap with male 1/4“ BSP male threads at both ends. Supplied complete with compression nuts and olives for fitting to either 1/4" or 5/16" OD copper pipe. Body length (including threads) 45mm with diameter 19mm.

Straight in line tap with male 1/4“ BSP male threads at both ends. Supplied complete with compression nuts and olives for fitting to either 1/4" or 5/16" OD copper pipe. Body length (including threads) 45mm with diameter 19mm.  --

Straight in line tap with male 1/4“ BSP male threads at both ends. Supplied complete with compression nuts and olives for fitting to either 1/4" or 5/16" OD copper pipe. Body length (including threads) 45mm with diameter 19mm.  --

Lost wax cast bronze lever for CA456 taps. 64mm total length and 17mm wide at ear. Cross hole recessed and threaded for a pan head M4 screw (supplied) to allow the lever to be tightened on to the hexagonal tap spindle. Hole broached for 7mm across flats hexagon fitting.

Non-return valve with 3/8" push-on spigots, suitable for use with two fuel pumps or to prevent fuel siphoning back to the tank when the pump is switched off. Low opening pressure of approximately 0.3psi.

Non-return valve with 5/16" push-on spigots, suitable for use with two fuel pumps or to prevent fuel siphoning back to the tank when the pump is switched off. Low opening pressure of approximately 0.3 psi.

Non-return valve with 1/4" push-on spigots, suitable for use with two fuel pumps or to prevent fuel siphoning back to the tank when the pump is switched off. Low opening pressure of approximately 0.3psi.

High quality forged brass non return valve with Viton seal suitable for use with petrol or diesel. Working temperature -20 deg C to 130 deg C. Opening pressure 0.025 barg (25cm head of water). Minimum working pressure 0.05 bar (0.7psi). Maximum working pressure 30 bar. High flow rate and silent operation. 3/8" BSP female threaded ports.

High quality forged brass non return valve with Viton seal suitable for use with petrol or diesel. Working temperature -20 deg C to 130 deg C. Opening pressure 0.025 barg (25cm head of water). Minimum working pressure 0.05 bar (0.7psi). Maximum working pressure 30 bar. High flow rate and silent operation. 1/4" BSP female threaded ports

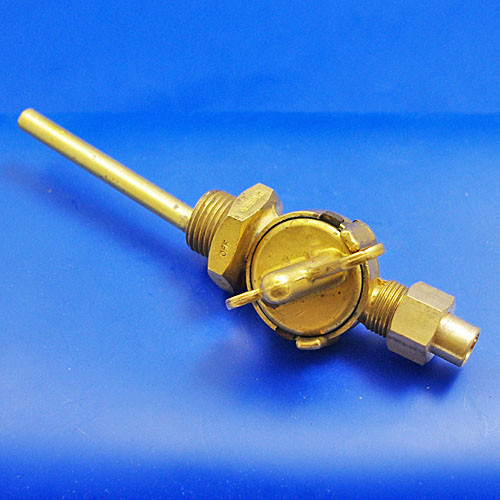

In-line circular body brass tap with cork gasket under the lever. Tank side fitting with 1/4" BSP thread under hexagon. Coned 1/4" BSP outlet connection for 1/4" nut and nipple connection. Overall length 70mm x 38mm wide. Front to back dimension, including lever and locking nuts, 55mm. Tap open when the lever is in the upright/in line postition.

Fuel resistant (neoprene) rubberised cork gasket that fits our 973, CA456 and 575 taps, 36mm in diameter, 3mm thick with two 7.5mm locating tags.

Straight in line tap with 1/8" BSP male thread (under sealing flange) into tank and a 7/16" x 19TPI outlet thread, with a 60 degree seat for solder nut and nipple type fittings for 3/16" or 1/4" OD pipe only. Overall dimensions 45mm long (including threads) and 19mm diameter. This tap is supplied bare, please order fittings separately as required. A solder type nut and nipples can only be fitted to the 7/16" end. The 1/8" BSP threaded end under the hexagon has a seating flange, so can be screwed into a tank, with a folder copper sealing washer.

Butterfly type drain tap with 1/4" BSPT (taper) thread.

Three way tap with 3/8" BSP male threads. Brass body with cork under lever. Supplied without nuts and nipples, please order them separately. Overall dimensions with nuts and nipples fitted - 100mm tall x 45mm wide. Mounting bracket hole centres 53mm apart.  Three position - centre position for off, then left or right to select either feed. Made to an original ENOTS pattern. Base and thumb lever are lost wax cast in bronze and then machined. A well made traditional tap.

ENOTS three way tap with cork plate and 3/8" BSP male threads, for 3/8" OD copper tube fittings, to be ordered separately. The hexagonal bar that the lever is attached to can be modified if required, so the lever can be fixed to the dash board. Base mounting holes on tap body with centres 53mm apart. Overall dimensions 68mm long (including threads) and 40mm wide. Mounting bracket is 68mm wide with 53mm hole centres. Control lever pillar 70mm tall (including lever), lever tongue 50mm long. Three position - Centre for off, then left or right to open either feed. Base, tap head and thump lever are lost wax cast in bronze and then machined.

ENOTS pattern three way tap with cork plate and 1/4" BSP threads, for 1/4'' or 5/16" OD copper tube fittings, to be ordered separately. The hexagonal bar that the lever is attached to can be modified if required, so the lever can be fixed to the dash board. Base mounting holes on tap body with centres 53mm apart. Overall dimensions 68mm long (including threads) and 40mm wide. Mounting bracket is 68mm wide with 53mm hole centres. Control lever pillar 70mm tall (including lever), lever tongue 50mm long. Three position - Centre for off, then left or right to open either feed. Base, tap head and thump lever are lost wax cast in bronze and then machined.

Three way tap with 1/4" BSP male threads. Brass body with cork under lever. Supplied without nuts and nipples, please order them separately. Overall dimensions with nuts and nipples fitted - 100mm tall x 45mm wide. Mounting bracket hole centres 53mm apart.  Three position - centre position for off, then left or right to select either feed. Made to an original ENOTS pattern. Base and thumb lever are lost wax cast in bronze and then machined. A well made traditional tap.

Straight in line tap with 3/8“ BSP threads on the inlet and outlet - both have a 60 degree seat for 3/8" BSP solder nut and nipple type fittings. Body length (including threads) 45mm and diameter 19mm. This tap is supplied bare, please order fittings as required separately. Solder type nut and nipples can be fitted to both ends of the tap as required. Please note that one end has a seating flange, which can be screwed into a tank with a folded copper washer. The standard bore is 4mm diameter, though this valve can be bored out to 6.25mm for an additional charge for higher flow applications - please see the option box below.

Hexagonal push on/off in line tap with 1/4“ BSP male threads. 1/4" BSP thread tank side, 1/4" BSP outlet thread with 60 degree cone seat for solder nut and nipple type fittings. Overall dimensions 50mm long (including threads) and 16mm diameter. This tap is supplied bare, please order fittings as required separately. A solder type nut and nipple can only be fitted to the outlet end. The 1/4" BSP thread under the hexagon has a seating flange, so can be screwed into a tank.

Hexagonal push on/off in line tap with 1/8" and 1/4“ BSP threads. 1/8" BSP thread into tank, 1/4" BSP outlet thread with 60 degree cone seat for solder nut and nipple type fittings. Overall dimensions 50mm long (including threads) and 16mm diameter. This tap is supplied bare, please order mating fittings as required separately. Solder type nut and nipples can only be fitted to the 1/4" BSP end. The 1/8" BSP thread under the hexagon has a seating flange, so can be screwed into a tank.

Straight in line tap with a 1/8" BSP thread (under a flange) into the tank and a 1/4" BSP outlet thread, with a 60 degree cone seat for solder type fittings. Overall dimensions 45mm long (including threads) and 19mm in diameter. This tap is supplied bare, please order fittings separately as required. This tap can only have a solder type nut and nipple fitted to the 1/4" BSP threaded end. The 1/8" BSP thread under the hexagon has a sealing flange, so can be screwed into a tank with a folded copper sealing washer.

Straight in line tap with 1/4“ BSP threads on the inlet and outlet - both have a 60 degree seat for 1/4" BSP solder nut and nipple type fittings. Body length (including threads) 45mm and diameter 19mm. This tap is supplied bare, please order fittings as required separately. Solder type nut and nipples can be fitted to both ends of the tap as required. Please note that one end has a seating flange, which can be screwed into a tank with a folded copper washer. The standard bore is 4mm diameter, though this valve can be bored out to 5mm for an additional charge for higher flow applications - please see the option box below.

1/4" BSP male threaded two way tap for solder nut and nipples. All three threaded ends have a 60 degree cone seat. The tap is supplied bare of any fittings, which are to be ordered separately. Dimensions with nuts and nipples fitted - 78mm wide x 47mm tall 42mm deep. A different in/out configuration can be achieved by reassembly of the taper plug and backing quadrant. No off position.

Straight, 1/8" BSP threaded in-line tap for oil supply. 60 degree conical seat in both ends for use with 1/8"BSP solder nuts and nipples to be bought separately.

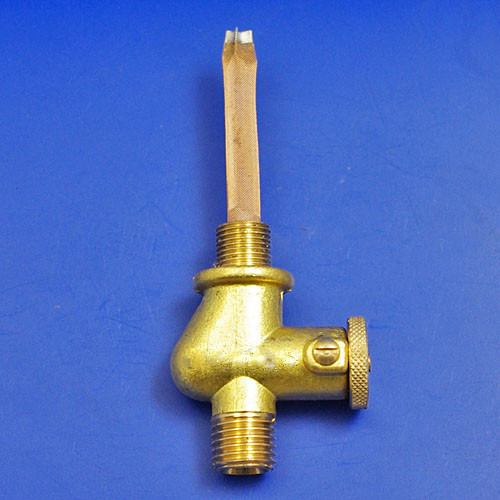

Angled pull on/push off in line fuel tap with a pull/push knob with a cork seal and filter gauze attached. Offered with either a 1/4" BSP or 1/8'' BSP male thread into the tank. 7/16" TPI outlet thread for solder nut and nipple connection. The tap is offered as shown, if a solder nut and nipple is required please order separately.

Angled pull on/push off in line fuel tap with a pull/push knob with a cork seal and filter gauze attached. Offered with either a 1/4" BSP or 1/8'' BSP male thread into the tank. 7/16" TPI outlet thread for solder nut and nipple connection. The tap is offered as shown, if a solder nut and nipple is required please order separately. --

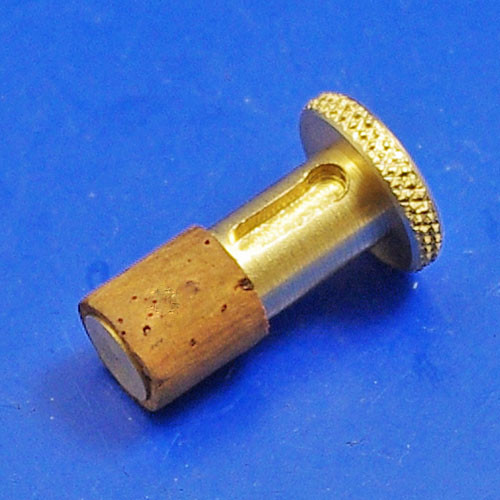

Replacement cork and brass pull knob for CA977 and 201 type taps. Cork approximately 10mm diameter. Dimension under knurled head to end of cork 23mm. Brass section under knurled head is slotted.

ENOTS type main/reserve tap. Fits into the bottom of some Autovacs. 3/8" BSP male thread for outlet pipework connection, supplied with nut and nipple for solder fitting to 3/8” OD pipe. 1/2" BSP thread into tank - will need a sealing washer e.g. WFC1/2BSP

Butterfly type drain tap with 1/8“ BSPT (taper) male thread

Pull on/push off in line fuel tap with a pull/push knob with cork seal and attached filter gauze. 1/8'' BSP thread into tank. 7/16" x 19TPI outlet thread for solder nut and nipple connection. The tap is offered as shown, if a solder nut and nipple is required please order separately.

Brass straight drain tap with 1/4" BSP male thread, for radiator drain. OFF position is with the lever in line with tap. BMC part no. 3H576 for MG, Wolseley, Austin. Engine block drain tap.

Brass straight drain tap with 1/8“ BSP male thread, for radiator drain. OFF position is with the lever in line with tap.

Brass straight drain tap with 3/8" BSP male thread for radiator drain. Overall length including lever - 62mm.

Brass, original pattern, straight drain tap with T bar handle. 1/8" BSP male thread.

Brass curved drain tap with 1/8" BSP male thread, for radiator drain.

Brass curved drain tap with 1/4" BSP male thread, for radiator drain.
