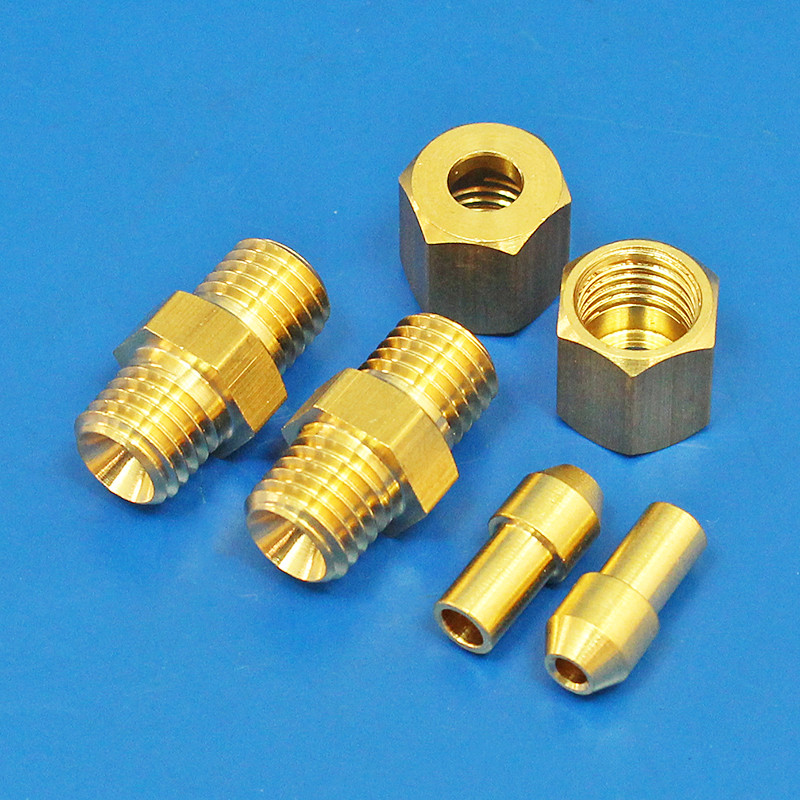

Replacement brass end fittings for CA1307B type Ki-Gass pumps (Vintage Supplies re-manufactured part as well as earlier Ki-Gass pumps of the same design, see image). The kit includes two male/male 5/16" UNF threaded unions, two nuts with 5/16" female threads for solder nipples, two solder nipples for 1/8" outer diameter copper pipe. Both unions have a cone for solder nipple connection at one end and at the other end, one union has a square cut socket to receive the base of a spring, the other a bull nose recess to receive a ball. For spare balls, springs and gland seals please see part number CA1307B-RK.

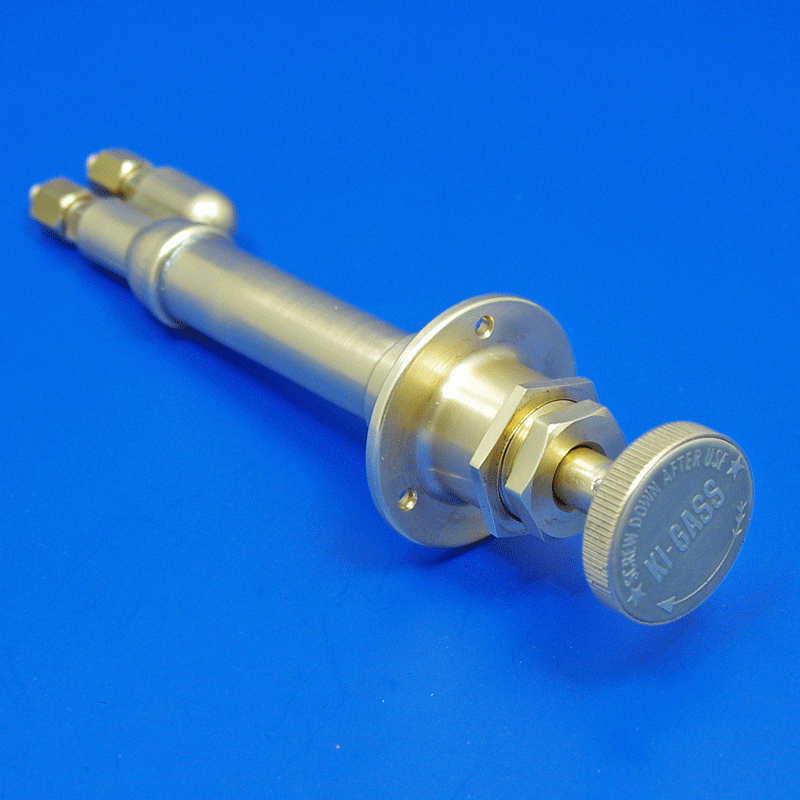

Re-manufactured Ki-Gass hand primer fuel pump. Supplied as shown. 44mm diameter mounting flange, wording KI-GASS SCREW DOWN AFTER USE, two stars and one arrow on engraved nickel silver disc, supplied with union nuts and solder nipples for 1/8" copper pipe, knurled operating knob 31.5mm diameter with a distance from mounting flange face to top of operating knob 45mm when screwed closed, 108mm when fully extended. Main body behind mounting flange 128mm long (including nuts and nipples) 26.5mm wide at widest point 12.7mm at narrowest. Please note the engraved disc will be supplied with the pump as a separate part, so that the knob can be painted or powder coated if required, it can then be fitted with a suitable adhesive. --

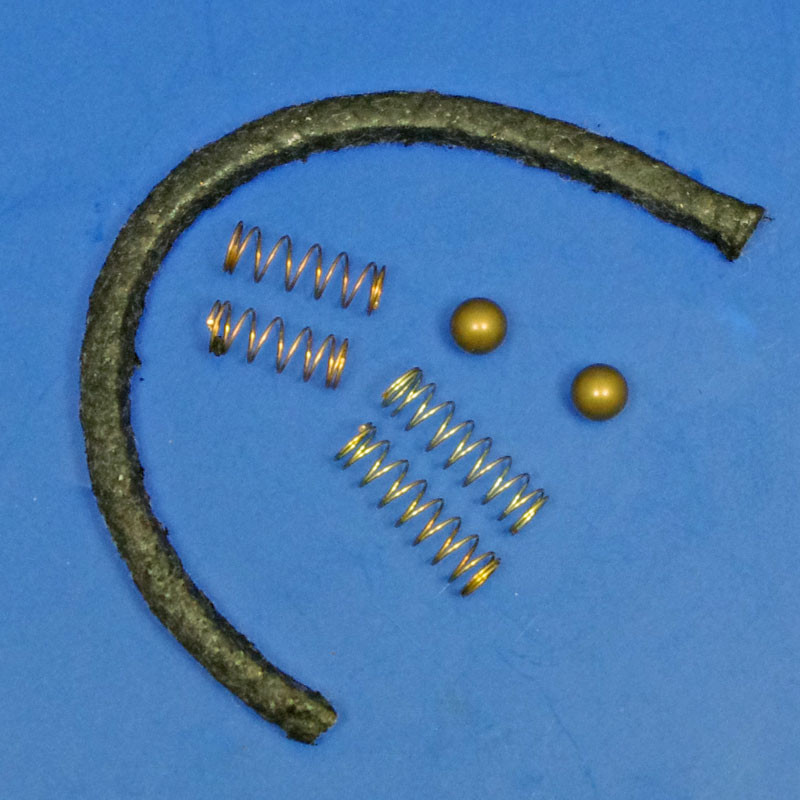

Repair kit for CA1307 Ki-Gass pump of the design shown in the attached photograph. The kit includes the necessary length of gland seal, 2 balls, 2 shorter springs and 2 longer springs - included to deal with inlet and outlet spring housing design variations (only two are required). Most commonly a short spring is required on the inlet of the pump and a long spring on the outlet.

Re-manufactured Ki-Gass hand primer fuel pump. Supplied as shown. 44mm diameter mounting flange, wording KI-GASS SCREW DOWN AFTER USE, two stars and one arrow on engraved nickel silver disc, supplied with union nuts and solder nipples for 1/8" copper pipe, knurled operating knob 31.5mm diameter with a distance from mounting flange face to top of operating knob 45mm when screwed closed, 108mm when fully extended. Main body behind mounting flange 128mm long (including nuts and nipples) 26.5mm wide at widest point 12.7mm at narrowest. Please note the engraved disc will be supplied with the pump as a separate part, so that the knob can be painted or powder coated if required, it can then be fitted with a suitable adhesive. --

Repair kit for CA1307B (Vintage Supplies re-manufactured part as well as earlier Ki-Gass pumps of the same design, see image). the kit includes the necessary length of gland seal, 2 balls, 2 shorter springs and 2 longer springs - included to deal with inlet and outlet spring housing design variations (only two are required). Vintage supplies re-manufactured item features the longer spring in both the inlet and the outlet.

Re-manufactured Ki-Gass hand primer fuel pump. Supplied as shown. 44mm diameter mounting flange, wording KI-GASS SCREW DOWN AFTER USE, two stars and one arrow on engraved nickel silver disc, supplied with union nuts and solder nipples for 1/8" copper pipe, knurled operating knob 31.5mm diameter with a distance from mounting flange face to top of operating knob 45mm when screwed closed, 108mm when fully extended. Main body behind mounting flange 128mm long (including nuts and nipples) 26.5mm wide at widest point 12.7mm at narrowest. Please note the engraved disc will be supplied with the pump as a separate part, so that the knob can be painted or powder coated if required, it can then be fitted with a suitable adhesive.
