Formed, steel (1mm thick) bracket for our 414 part number mechanical clockwork flasher unit. Gloss black powder coat. For under dash mounting. 8mm diameter mounting hole in top flange, 10mm hole for spindle of the switch to pass through. 63mm high, 33mm deep, 48mm wide. Please see photographs - switch not included!

Black coated steel base plate 40mm in diameter with 23mm internal diameter. Four M3 threaded holes - two for attaching the TS82 switch to the plate and two for fitting the plate to a surface with 1/2" max surface. For thicker wooden dashboards, relieve the M3 threads and use a 4 gauge (2.9mm) screw. Supplied with two M3 x 16mm pan head screws for attaching the switch to the plate, and two M3 x 16mm countersunk screws and nuts for attaching the plate to the surface. For an alternative mounting plate that enables mounting to a Lucas S58 type column stalk, please see part number TS82-S58.

Indicator switch which mounts to steering column, secured with a band clip that can be removed without leaving any extra holes etc. Body approx 56mm tall x 44mm deep, overall length approx 164mm. Please note that this part does NOT self cancel. Maximum column size 38.5mm (1.52")

Panel mounted indicator switch, suitable for any application. Requires 25mm hole through metal panel. Overall diameter 37.5mm at rear.

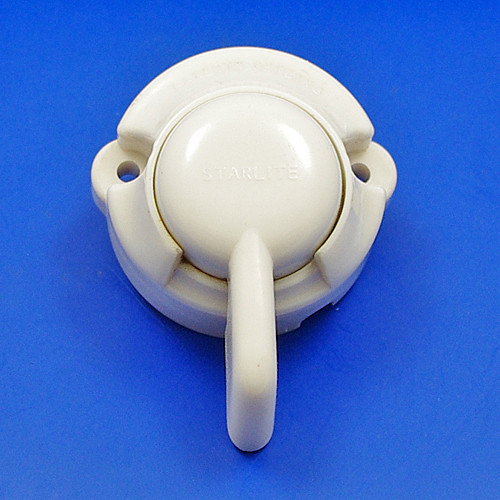

White surface mounting trafficator indicator switch with integral flasher unit. New old stock by Starlite, with three terminals marked IG, R and L. Requires separate warning light, supplied with insulating card, dimensions 66mm long x 50mm wide x 30mm tall with 38mm fixing hole centres,

Remanufactured part equivalent to Lucas 31311, SPB120 panel mount indicator switch. Domed raised switch body assembly with moulded lever in black bakelite. Black, flat oval base mount (40mm high x 54mm wide) with mounting holes at 46mm centres to enable mounting on to any flat panel. Brass screw terminal connections to rear. Indicator bulb under screw down crown in centre - please specify bulb voltage required (6, 12 or 24v). Overall size 54mm wide x 60mm high. A super reproduction with a very positive switch action. Supplied with mounting kit including short link bar which can be used to make the switch equivalent to Lucas part number 31190. We also offer ivory and brown versions of this switch, colour matched to original switches - please see part numbers SPB120-IVORY and SPB120-BROWN. For bulbs - please see part numbers 6 volt - B990. 12 volt - B987. 24 volt - B650.

Remanufactured part equivalent to Lucas 31476, SPB120 panel mounted indicator switch. Domed raised switch body assembly with moulded lever in ivory bakelite. Black, flat oval base mount (40mm high x 54mm wide) with mounting holes at 46mm centres to enable mounting on to any flat panel. Brass screw terminal connections to rear. Indicator bulb under screw down crown in centre - please specify bulb voltage required (6, 12 or 24v). Overall size 54mm wide x 60mm high. A super reproduction with a very positive switch action with body in correct ivory. Supplied with mounting kit including short link bar which can be used to make the switch equivalent to Lucas part number 31190. We also offer black and brown versions of this switch - please see part number SPB120-BLACK and SPB120-BROWN. For bulbs - please see part numbers 6 volt - B990. 12 volt - B987. 24 volt - B650.

Black coated steel base plate 40mm in diameter with 23mm internal diameter. Two vertical locating tabs with threaded holes for locating the mounting plate into the body of the Lucas S58 column stalk. There are also two threaded mounting holes in the face of the plate for attaching the TS82 switch. Supplied with two 6mm long pan head screws for attaching the plate locating tabs to the body of the ST58 stalk and two 16mm screws and nuts for attaching the switch to the plate. Base plate and fixings supplied ONLY - photos of Lucas S58 column stalk included for reference (photos of plate and plate plus switch mounted on column). For an alternative mounting plate for flush/dash mounting, please see part number TS82-DASH.

Reproduction part equivalent to Lucas TS82 panel and column mounted rotary 3-way indicator/Trafficator switch. Alternative Lucas number 31611 (also 31379 is the same switch body just with a longer lever used for column mounting only). Flat circular base mount 40mm diameter with two 3.5mm holes at 32 mm centres to enable mounting. Three brass terminal connections to rear complete with brass grub screws. Purchase with a choice of optional mounting plates - part numbers TS82-DASH for flush fitting or TS82-S58, an alternative base plate with two down-turned mounting tabs enabling the fitting of the switch to the Lucas S58 column mounted stalk that also featured a combined horn and dip switch. The switch was also fitted to other steering column-mounted control arms including the Lucas models SC60 and SC76A/1 - noting as above, that some applications featured the version with a slightly longer thumb lever - though the body, mounting arrangement and function are the same as this shorter lever version, suited to both stalk and dash fitting. Unlike SD84/SPB120 switches, the TS82 does not have a light to show that the indicators are working, so a visible 'indicator on' warning light - or buzzer for an audible warning - should be fitted. Please see example part numbers 842, 0609 or BUZZ. Domed raised body assembly with a moulded lever. Black bakelite with a very high-quality finish and positive switch action. Overall size 40mm wide x 35mm high.  Commonly used with SE62 and SE100/SF80 trafficator models with applications inluding Bedford, Citroen, Jowett, Lea Francis, Morris, Land Rover, Rover and Vauxhall

Indicator switch equivalent to Lucas SQB119 for AC, Triumph and Morgan. Controls indicators, lights and horn. Applications include: AC 3000 ME 1979-85, MORGAN - Four Four 1600 1982-85, Four Four 1600 OHV 1977-82, Four Four 1600 TC 1982-85, Plus Eight 3.5 1977-86, Plus Eight 3.5 EFi 1984-90, Plus Eight 3.9 V8 1990 on, TRIUMPH - Dolomite 1300, 1500, HL, 1800 HL 1976-81, Dolomite Sprint 1973-81, 2000 , 2500 1975-76

Indicator switch equivalent to Lucas SQB118 column indicator switch for AC, Triumph Morgan. Controls indicators, and lights - without push for horn. Applications include: MGB GT 1971-76, MG Midget 1500 1975-77, MGB 1971-76

Illuminated steering column-mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back). Ivory bakelite type finish with plated stalk. Overall length of body and stalk/knob is 155mm. Green illuminated end. Maximum column size 38.5mm (1.52")

Steering column mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back). Ivory bakelite type finish with plated stalk. Overall length of body and stalk/knob 155mm. Plain ivory end. Maximum column size 38.5mm (1.52")

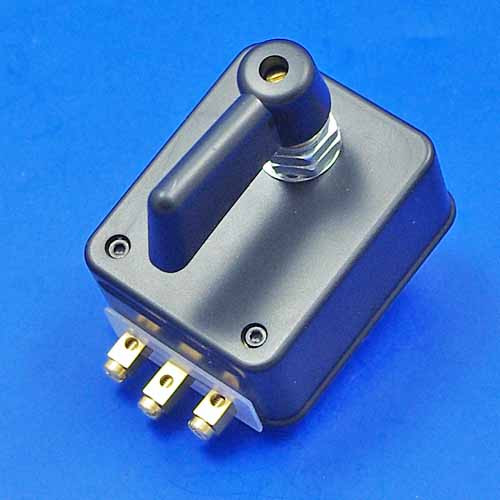

Clockwork panel mounted flasher unit/indicator switch (suitable for 6, 12 or 24 volt systems), makes and breaks contacts for approximately 20-25 seconds then self cancels. Body size approximately 45mm x 55mm x 25mm. Requires 12mm hole in metal panel. Easy to connect input (fused) and exit terminals. This unit is neither voltage or bulb wattage sensitive. PLEASE SEE new part number 414M for a mounting bracket for this switch.

Column mounted, self cancelling indicator switch with horn and light flash functions. Applications include Triumph Stag MkII right hand drive. Models from LD20001

Column mounted self cancelling indicator switch with light flash function. Applications include MGB 1962 to 70, MBG GT 1965 to 70, MGC 1967 to 70, Midget 1962 to 69, Sprite MkII, II and IV 1962 to 69. Complete with wiring harness and bullet terminals.

Self cancelling indicator switch. Applications include Triumph Herald, Vitesse Mk1 & Mk2, Spitfire Mk1, Mk2, Mk3 Mk4 & 1500 1962 - 1981, GT Mk1, Mk2 & Mk3 1966 to 1973, Triumph TR4, TR5, TR6, Lotus Elan S1 RHD & LHD. This part can be fitted on either the left or right hand side of the steering column. Complete with wiring harness and bullet terminals.

Repair kit for black SPB 120 switches - black Bakelite switch base with brass terminal connections, three piece brass sprung roller contact assembly, black Bakelite screw down bezel with red lens and spring. Bulbs: 6 volt - B990, 12 volt - B987, 24 volt - B650.

Heavy duty metal toggle switch. ON/OFF/ON (indicator function). 25amp rating. Approx. 12.5mm hole required.

Panel mount indicator switch, suitable for any application. Requires 25mm hole through metal panel. Overall diameter 37.5mm at rear.

Steering column mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back), black bakelite type finish with plated stalk. Overall length of body and stalk/knob 155mm. Plain black end Maximum column size 38.5mm (1.52")

Steering column mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back), black bakelite type finish with plated stalk, overall length of body and stalk/knob 155mm. Green illuminated end. Please note that this part does NOT self cancel. Maximum column size 38.5mm (1.52")

Metal toggle indicator switch ON/OFF/ON. Aluminium machined end. Approx. 12.5mm panel hole required.

Panel mounted indicator switch, with knob which illuminates in use, 12 volt application only. Requires 25mm hole through metal panel for mounting.

Toggle Switch On/Off/On (Indicator function). Equivalent to Lucas part number 31743. 6.3mm Lucar/blade terminals. 10 amp rating at 12V DC. Approx. 14.5mm panel hole required. Maximum panel thickness 3.1mm. Lever length 34mm.

Illuminated indicator switch. Small Illuminated switch - ON/OFF/ON.  Approx. 16.5mm mounting hole required. These come fitted with a 12v bulb, however these can be change to suit the following 6v (B279s)  12v (B280B)  24v (B687)

Remanufactured part equivalent to Lucas 31190D, SPB120 panel mounted indicator switch. Domed raised switch body assembly with moulded lever in brown bakelite. Black, flat oval base mount (40mm high x 54mm wide) with mounting holes at 46mm centres to enable mounting on to any flat panel. Brass screw terminal connections to rear. Indicator bulb under screw down crown in centre - please specify bulb voltage required (6, 12 or 24v). Overall size 54mm wide x 60mm high. A super reproduction with a very positive switch action with body in correct brown colour - colour matched to original switches. Supplied with mounting kit including link bar. We also offer ivory and black versions of this switch - please see part numbers SPB120-IVORY and SPB120-BLACK. For bulbs - please see part numbers 6 volt - B990. 12 volt - B987. 24 volt - B650.
