The Xenos Mk2 Cabin Heater 2 Speed Heater - WITH Demisting Outlets. W 251mm x D 196mm x H 115mm

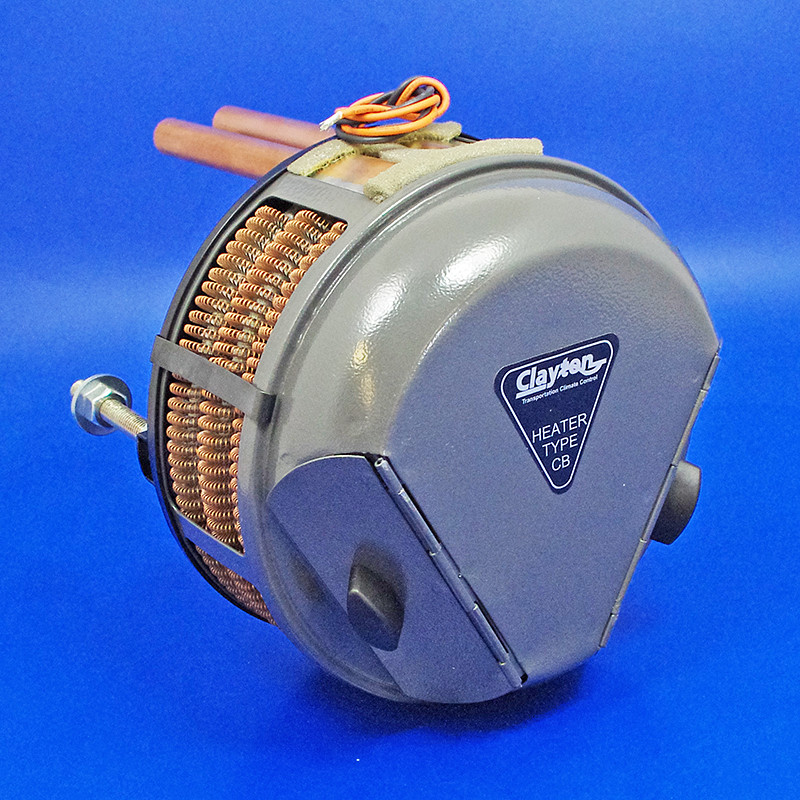

The Clayton heater was used in 1960's Jaguar saloons and cars from Daimler, Alvis, Lea Francis, Armstrong Siddeley, Rover and the Land-Rover S1. It is also very similar to the Smiths unit fitted to Morris, TR3, Austin-Healey and Jaguar XK. Inlet/Outlet water pipes are at a 90 degree angle on this unit. This is a single speed 12V motor. The unit can be specified with a 6V motor for an additional charge as a special order item - please enquire for details

The Clayton heater was used in 1960's Jaguar saloons as well as cars from Daimler, Alvis, Lea Francis, Armstrong Siddeley, Rover and the Land-Rover S1. It is also very similar to the Smiths unit fitted to Morris, TR3, Austin-Healey and Jaguar XK. Requires 1 1/4" hose to connect the demist outlet to demist nozzles. This is a single speed 12V motor. The unit can be specified with a 6V motor for an additional charge as a special order item - please enquire for details.

The Clayton heater was used in 1960's Jaguar saloons as well as cars from Daimler, Alvis, Lea Francis, Armstrong Siddeley, Rover and the Land-Rover S1. It is also very similar to the Smiths unit fitted to Morris, TR3, Austin-Healey and Jaguar XK. This is a single speed 12V motor. The unit can be specified with a 6V motor for an additional charge as a special order item.

Heater element with motor plate. This is a replacement for the Smiths circular heater element with straight pipes and motor plate. Picture shows motor plate side of element. The elements Smiths originally made were of three depths - 2 1/4", 3" and 4". This replacement is 2 5/8" in depth but comes with three new clips which enable you to reassemble your heater with the new element. A small adjustment to the fan position on the motor shaft may be required. This type of heater was fitted to many classic cars including Morris Minor, Land Rover Series I & II etc.

Clayton heater electric fan - single shaft 1/4" diameter. 12 volt fan motor for Clayton Heaters. Three hole fixing, with the mounting plate in the middle of the motor. Can rotate in either direction. It is insulated and can be used on either Pos. or Neg. earth vehicles. Please note that the supplier makes this from a motor with a double ended shaft by cutting off one end.

Classic car heater water valve. Operated by a cable. This is a 'push to close' valve and turn the hot water supply down. Manufactured for Clayton type heaters but can be used with other systems.

1600mm long cable with a loop at either end. The loop fits the water valve, the other end can be modified to suit. Manufactured for Clayton heaters but can be used with other systems.

Chrome Demister Escutcheon, L 185mm x W 17mm, fixing holes centre to centre 170mm

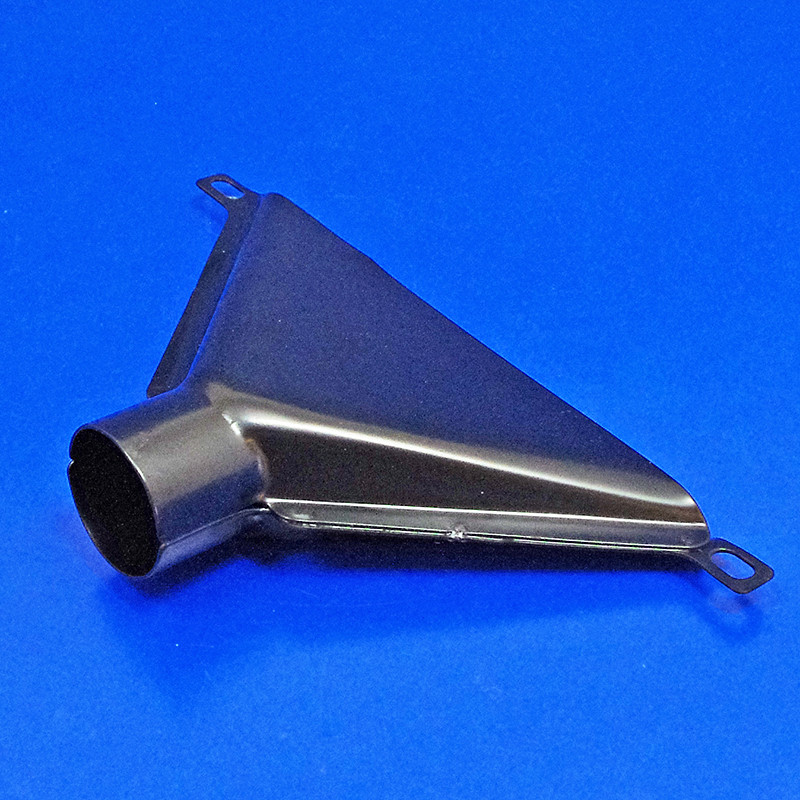

Heater demist nozzle. Black painted steel,165mm mounting hole centres 1 1/4" inlet OD. 145 x 10mm outlet.

Cable assembly for operating water valve part number FINCOWV. 700mm assembly length. Cable length 630mm. Wire at one end formed to fit hole in water valve (FINCOWV) operating lever. Turn switch/gear mechanism at other end moves the cable to actuate the valve. Half round spigot on turn mechanism, supplied without knob

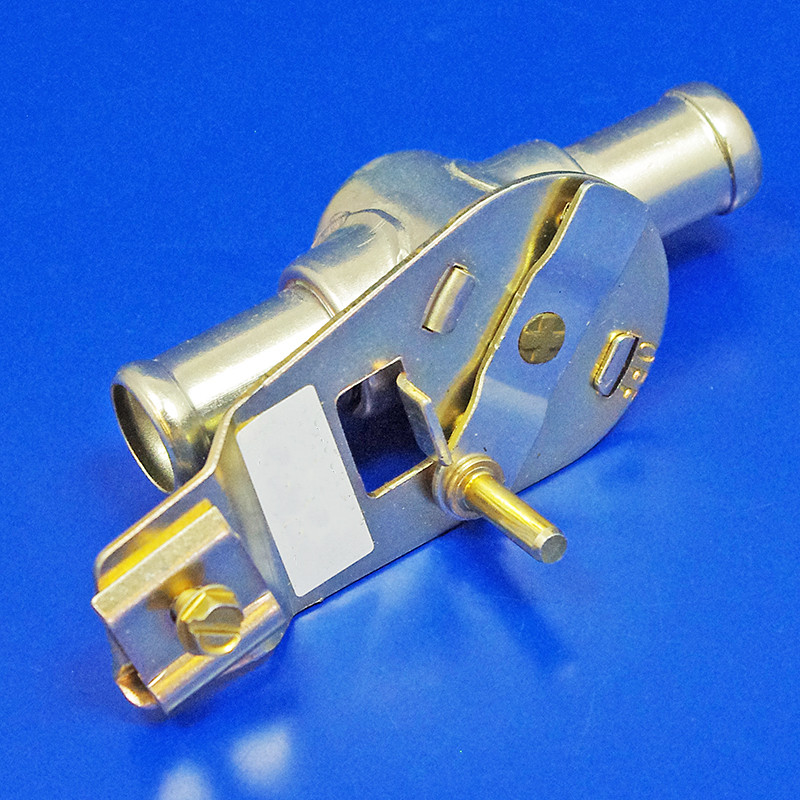

Classic car heater water valve. Operated by cable, this is a 'pull to close' valve (though 45 degrees) turning the hot water supply down. 15.7mm OD tube connections with swelling to locate worm drive clip behind when tightening water hose on to spigot. 90mm long (between hose connections. Other major dimensions 60 x 85mm. can be used in other heater systems as well as with Finland heaters

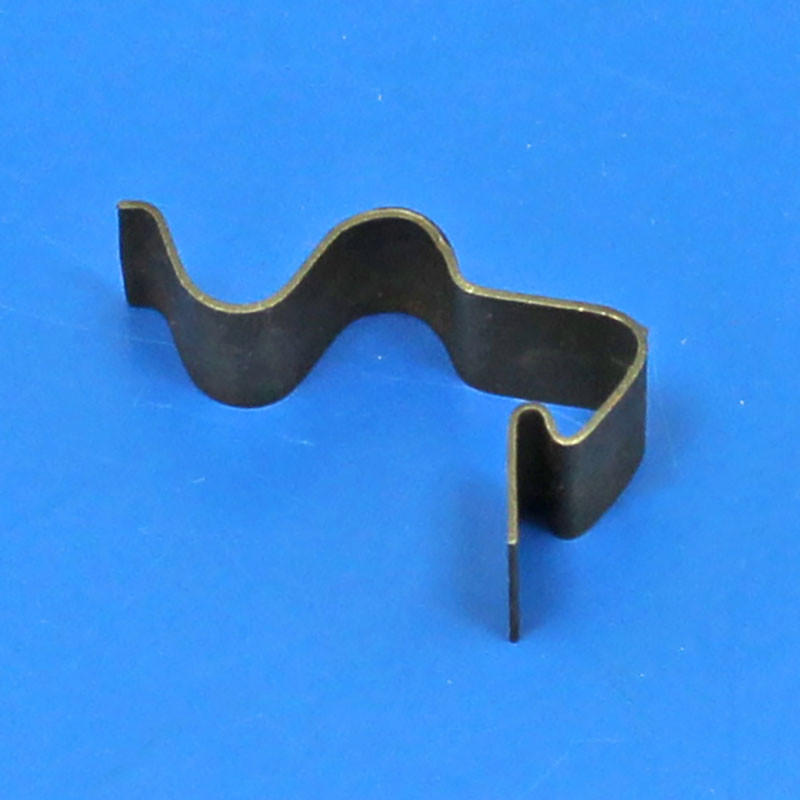

Sprung steel clip for holding water valve operating cable in place. For finland heater cable FINCABLE, but suitable for other 5.5 to 6mm operating cables

Classic car heater water valve. Operated by a cable. This is a 'pull to close' the valve and turn the hot water supply down. Manufactured for Clayton type heaters but can be used with other systems.

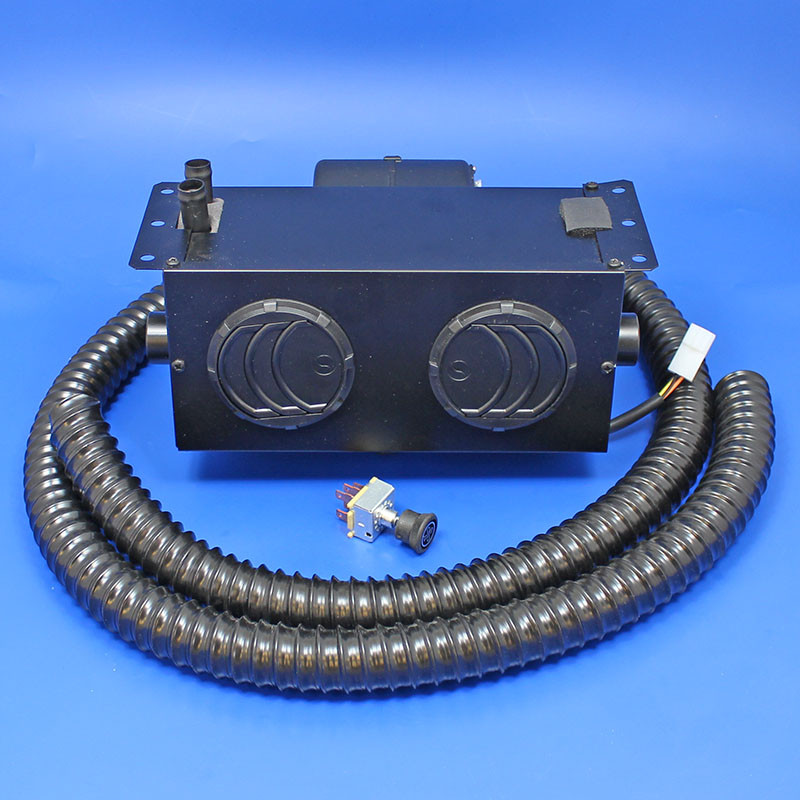

THE FINLAND HEATER. Connect into water system via 5/8" (16mm) outer diameter copper pipe stubs (with swelling at ends to tighten worm drive clips behind around water hose). Complete with four position fan speed switch and demister air hose. 3 Speed Fan. Heater matrix box sizes 120mm x 120mm x 290mm. Heater motor protrudes 110mm. A compact high performance after market heater system from long established ELITE KL. Often included as standard equipment in many quality kit cars. Demister nozzles NOT included - please purchase heater demist nozzle part number HDN if required. Also cable operate water valve part number FINCOWV, operating cable for valve FINCABLE, and clip for cable FINCLIP. Black powder coated steel body, plastic cased blower unit, copper/brass radiator construction. Please see images for additional technical information.
