Aston type cap - internal thread 2 3/4" (70mm) x 16 TPI. Approx 87mm x 116mm overall. Release lever stands up slightly at side. -- Original new old stock ENOTS cap.

Monza type cap - internal thread 2 1/2" (63mm) x 16 TPI. Overall approx 76mm x 100mm overall. Release button is opposite the hinge, under the lid. -- Remanufactured item

Monza type cap - internal thread 2" (51mm) x 18 TPI. Overall size approx 60mm wide x 82mm long x 28mm tall. Release button is opposite the hinge, under the lid. -- Re-manufactured pattern part

Flanged aluminium neck with internal spigot for 2" (51mm) pipe. Thread 3 1/2" BSP, overall diameter 126mm. 6 holes with 4.5" pcd. This flange will accept the LIK1 locking filler cap

Locking filler cap insert for fitting into flange funnels/necks with spigots (118A, 119A & 120A). Please note - this will NOT fit the 2" neck (117A).

A chrome plated die cast cap with lock. It fits to a 2" flexible hose, as fitted to many post war sports cars including Triumphs and ACs.

Monza type cap - polished light alloy or chrome plated finish - internal thread 2 3/4" (70mm) x 16 TPI. Measures approx 86mm x 114mm overall. Release button is opposite the hinge, under the lid. -- Remanufactured Monza style cap

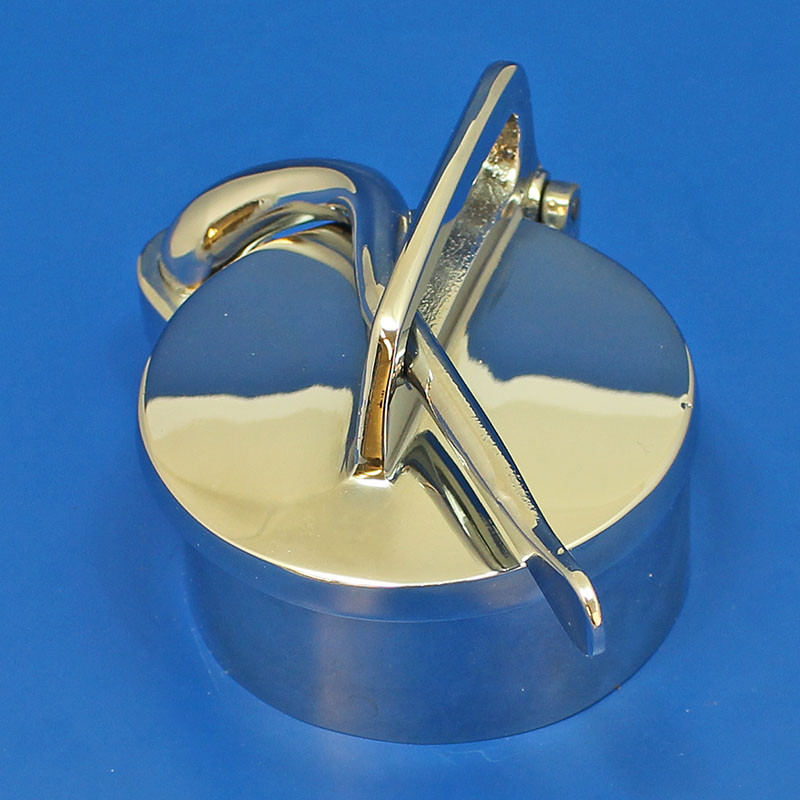

Reproduction of Bonora lever top filler cap, period fitting to Singer and MG of the 1930's, supplied in chrome plate finish over bronze, fully machined and assembled. Internal thread to neck 2 3/8" (approx 60mm) x 18TPI. Overall size 75mm x 110mm, including lever.

Flanged adapter neck - thread 2 3/4" (70mm) x 16 TPI, overall diameter 4" (105mm) -- Self colour brass

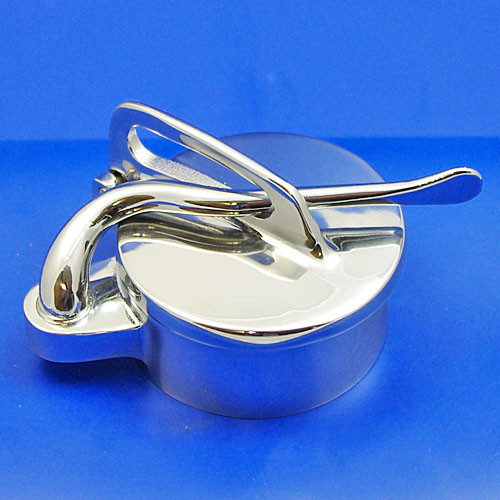

Reproduction of Bonora lever top filler cap, period fitting to MG of the 1930's, supplied in chrome plate finish over brass, fully machined and assembled. Internal thread to neck 2" (approx 51mm) x 18TPI. Overall size 70mm x 110mm, including lever.

Reproduction of larger Bonora lever top filler cap, period fitting of the 1930's. Supplied in chrome plate finish over bronze (three lost wax castings machined and assembled). Internal thread to neck 2 3/4" (approximately 70mm) x 16TPI. Overall size 85mm x 137mm including lever. Fits to our standard 2 3/4" filler necks (119, 119A, 166 or 166A listed)

Flanged adapter neck - thread 2 3/4" (70mm) x 16 TPI, overall diameter 4" (105mm) -- Chrome plated on brass

Flanged adapter neck - thread 3 1/2" BSP, overall diameter 125mm, alloy.

Flanged adapter neck - thread 2" (51mm) x 18 TPI, overall diameter 3" (75mm). -- Chrome on brass finish

Flanged aluminium neck with internal spigot for 2" (51mm) pipe. Thread 2" x 18TPI, overall diameter 82mm. 6 holes at 2.5" pcd. Please note - this flange will NOT accept the LIK1 locking filler cap.

Plain adapter neck in brass - external thread 2" (51mm) x 18 TPI, 12.3mm deep,  fits over 45mm diameter pipe

Plain adapter neck in aluminium - external thread 2" (51mm) x 18 TPI, for welding or 51mm ID hose.

Flanged adapter neck - thread 2 3/4" (70mm) x 16 TPI, overall diameter 4" (105mm) --

Flanged aluminium neck with internal spigot for 2" (51mm) or 2 1/4" (57mm) pipe. Thread 2 3/4" x 16TPI, overall diameter 94mm. 6 holes at 3" PCD. This flange will accept the LIK1 locking filler cap

Plain adapter neck in brass - external thread 2 3/4" (70mm) x 16 TPI. Fits over 63mm pipe.

Plain adapter neck in aluminium - external thread 2 3/4" (70mm) x 16 TPI, for welding or 70mm ID hose.

Flanged adapter neck - thread 2 1/2“ (63mm) x 16 TPI, overall diameter 4" (100mm). -- chrome plated brass

Flanged adapter neck - thread 2 1/2“ (63mm) x 16 TPI, overall diameter 4" (100mm). -- Self colour brass

Flanged aluminium neck with internal spigot for 2" (51mm) or 2 1/4" (57mm) pipe. Thread 2.5" x 16TPI, overall diameter 94mm. 6 holes at 3" pcd. This flange will accept the LIK1 locking filler cap.

Plain adapter neck in brass - external thread 2 1/2" (63mm) x 16 TPI. Fits over 57mm pipe

Plain adapter neck in aluminium - external thread 2 1/2" (63mm) x 16 TPI, for welding or 63mm ID hose.

Locking type Wilmot Breeden chrome plated fuel filler cap. 2 point bayonet fitting cap supplied complete with two keys. Preferred filler neck size inside minimum 37mm, locating tangs max 46mm dimension. Fits MGB, Spitfire etc. Cap measures 79mm overall.

Reproduction of Bonora twist on lever top filler cap, period fitting to MG of the 1930's. Supplied in chrome plate finish over brass, fully machined and assembled. Internal neck plain 2 3/8" (approx 60mm) with two opposite positioned 1/4" locating stops. Overall size 70mm x 110mm including lever.

Monza type cap - polished light alloy or chrome plated finish - internal thread 2 3/4" (70mm) x 16 TPI. Measures approx 86mm x 114mm overall. Release button is opposite the hinge, under the lid.

Aston type cap - internal thread 2 1/2" (63mm) x 16 TPI. Approx 76mm x 105mm overall. Release lever stands up slightly at side.

Monza type cap - internal thread 2" (51mm) x 18 TPI. Overall size approx 60mm wide x 82mm long x 28mm tall. Release button is opposite the hinge, under the lid.

Aston type cap - internal thread 2 3/4" (70mm) x 16 TPI. Approx 87mm x 116mm overall. Release lever stands up slightly at side.

Monza type cap - internal thread 2 1/2" (63mm) x 16 TPI. Overall approx 76mm x 100mm overall. Release button is opposite the hinge, under the lid.

Aston type 2 - polished light alloy finish with roller catch. Internal thread 3 1/2" BSP (100mm, 3.93") x 11 TPI. Approx. 122mm x 162mm overall. Release lever stands up slightly at side roller catch. Original pattern fuel filler cap as used on Jaguar C & D type etc.

Aston type two - polished light alloy finish. Internal thread 3 1/2" BSP (100mm, 3.93") x 11 TPI. Approx 122mm x 162mm overall. Release lever stands up slightly at side.

Aston type cap - internal thread 2 1/2" (63mm) x 16 TPI. Approx 76mm x 105mm overall. Release lever stands up slightly at side. --

Aston type cap - internal thread 2 3/4" (70mm) x 16 TPI. Approx 87mm x 116mm overall. Release lever stands up slightly at side. --

Aston type cap - internal thread 2 3/4" (70mm) x 16 TPI. Approx 87mm x 116mm overall. Release lever stands up slightly at side. --
