Surface mounted switch equivalent to Lucas type SPB140 (model HD77). Base 50mm diameter, two bolt mounting through back (35mm hole centres). Side dip switch (lever 18mm long), front horn push (button diameter 25mm). Approximately 50mm deep. Three recessed cable connections in base. A high quality reproduction.

Foot operated dip switch for mounting through floor. Base measures 55mm x 45mm. Overall height 60mm of which switch pillar is 45mm tall, fixing holes 38mm.

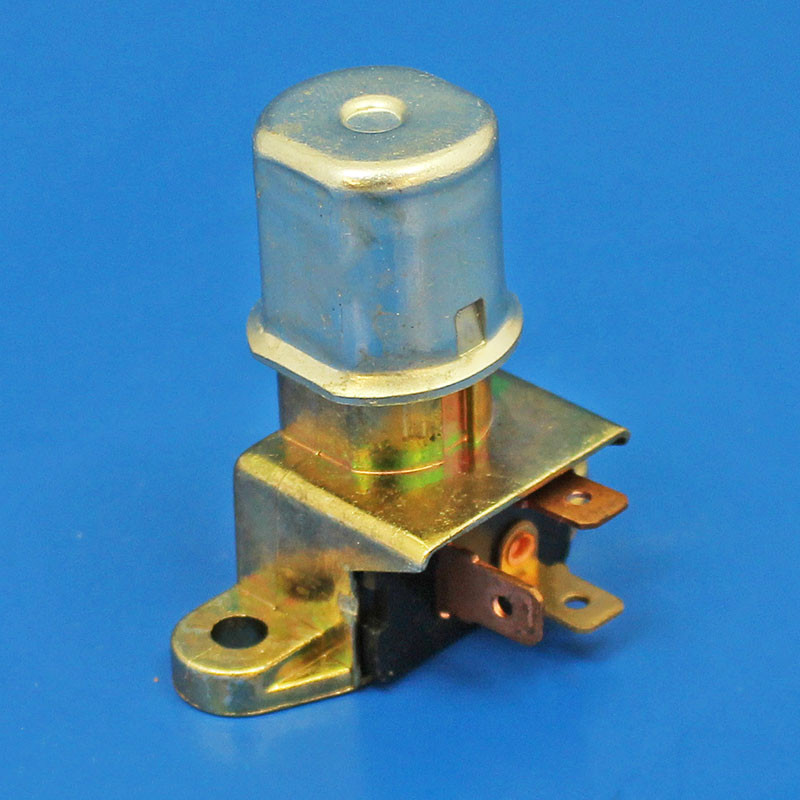

Lucas type 34790 floor mounted dip switch as fitted to Mini, MG, TR5 and early TR6

Floor mounted traditional dip switch for foot use, equivalent to Lucas part number 31284 (model FS22-1). Base plate measures 75mm x 40mm with 60mm hole centre fixing screws, three terminals with screw/plate connections, switch operating button 32mm diameter 35mm tall, overall height of switch from base plate 47mm. Very similar to switch no. 31226.

Compact two position switch suitable for dash mounting. A quality reproduction switch equivalent to Lucas part number 9RW (380417) originally offered with a plain black cover (or with a cover marked with an 'ON' position - part number 31291). The brass cover over the switch mechanism incorporates two 3mm diameter mounting holes at 35mm centres. A very neat period switch originally used to control fog and spot lamps, dipping reflectors and reversing lamps. Solder sockets on rear for wiring connection.

Large surface mounted 2 way switch, 2 5/8'' (67mm) diameter, three hole fixing. Well finished in black bakelite. Genuine new old stock - Lucas part number 31001.
